Locating Street Lighting Cables

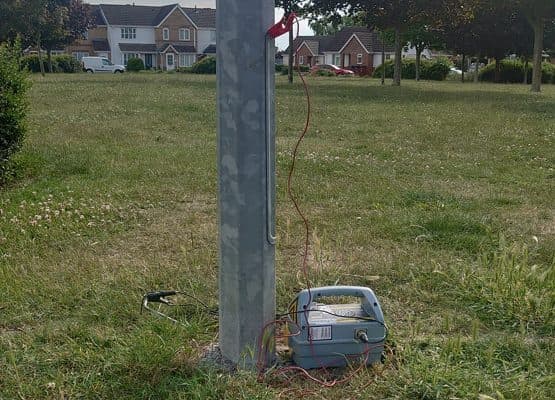

To locate street light cables, the Genny should be connected as follows:

• Switch the Genny on and insert the connection leads.
• Connect the black lead to a suitable earth as close to the column as possible.
• Connect the red lead to the metalwork of the column.
• Adjust the signal level control so that the CAT display is set to half scale.

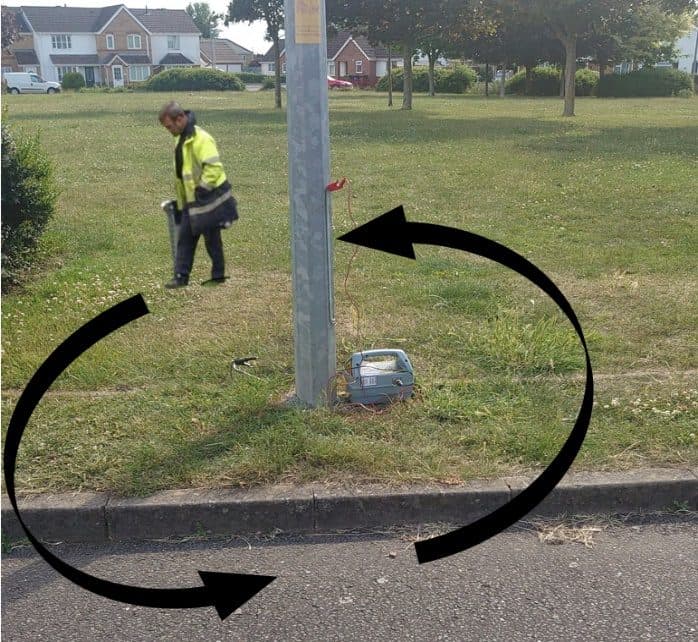

• Where possible, walk around the column making a note of any signal(s) detected.

Once a signal has been detected and the direction has been established, the route can be followed.

Cables to and from other street furniture may also be detected by making a direct connection to the metal structure.
