Handbook · The practical half

Induction

Chapter 27 of 33 · printed page 18

Induction should be used after all the previous techniques have been exhausted. The Genny should be placed on the ground with the handle in line with any suspected or known buried services. The CAT should then be used a minimum of 10 metres away from the Genny.

The figures

4 from the printed chapter

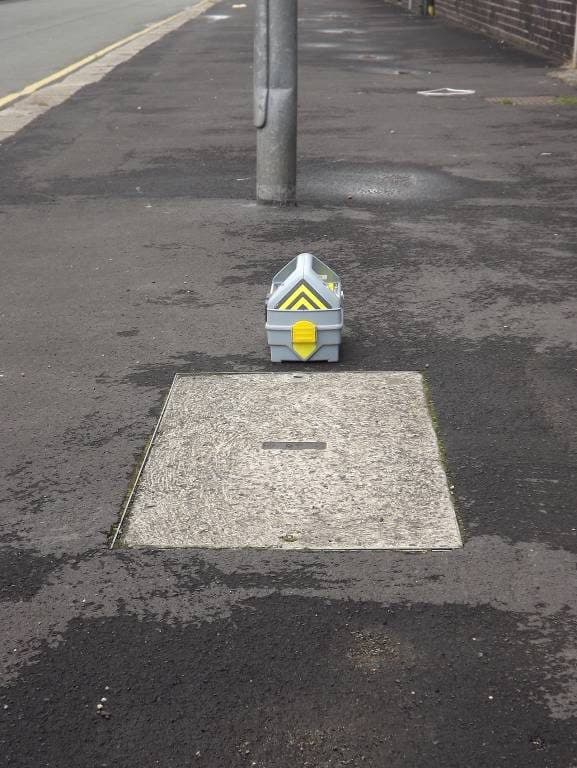

Genny stood upright on the footway in line with a chamber cover — induction position.
Fig 01Genny stood upright on the footway in line with a chamber cover — induction position.

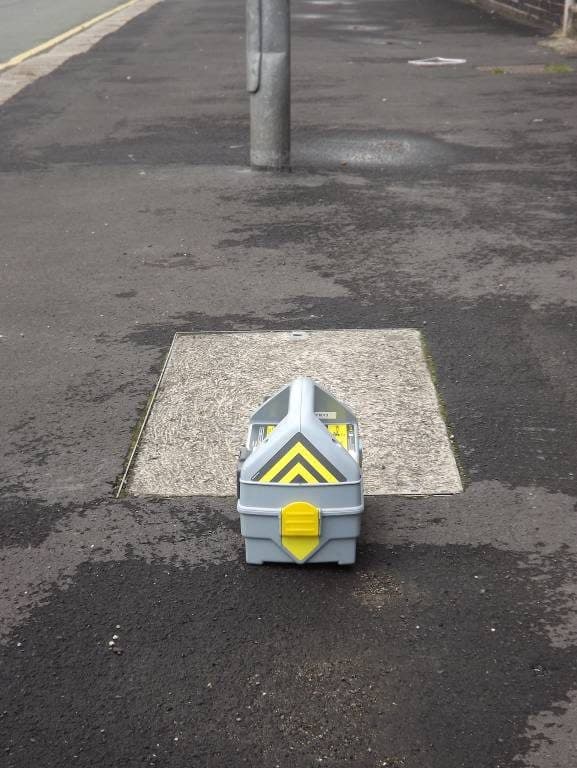

Genny upright in the centre of a paved chamber cover in the footway.
Fig 02Genny upright in the centre of a paved chamber cover in the footway.

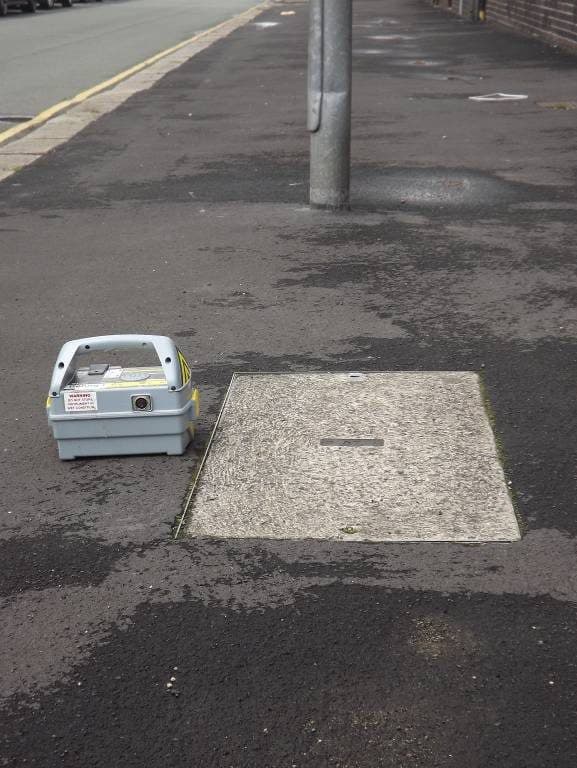

Genny lying flat beside the chamber cover — the horizontal position couples along a different axis.
Fig 03Genny lying flat beside the chamber cover — the horizontal position couples along a different axis.

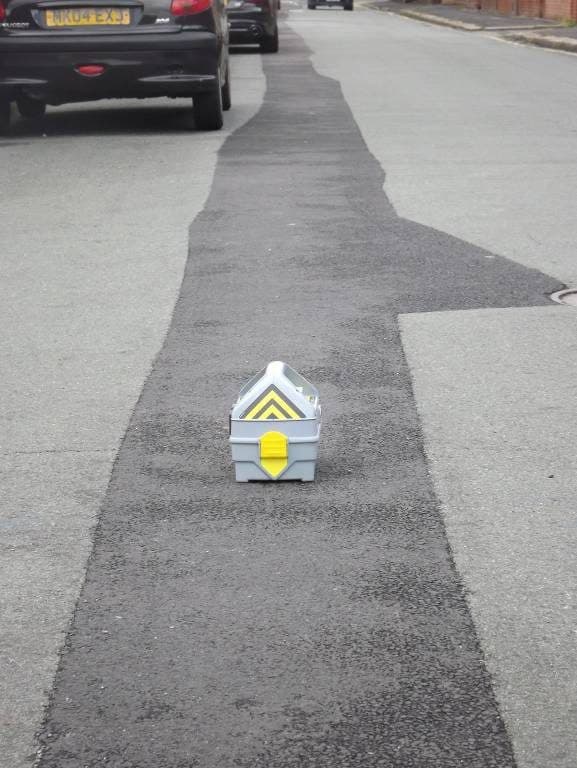

Genny upright in the middle of a patched trench line running along the road.
Fig 04Genny upright in the middle of a patched trench line running along the road.
